How To Choose The Right Metal Seal

Standard elastomeric and polymeric seals often fail under extreme temperatures, high pressures, or aggressive chemical environments. These material breakdowns lead to catastrophic leaks, hazardous blowouts, or severe unplanned downtime. You need a definitive solution for harsh operating conditions. An industrial Metal Seal provides the ultimate resilience for demanding sectors like aerospace, oil and gas, and semiconductor manufacturing. However, specifying them requires precise engineering regarding hardware design, load distribution, and metallurgical properties. This guide provides a step-by-step decision framework to evaluate profiles, materials, and hardware requirements. You will learn how to select a sealing solution guaranteeing long-term joint integrity in the most unforgiving environments.

Key Takeaways

• Metal seals become necessary when applications exceed 250°C (482°F), face pressures above 10,000 PSI, or require ultra-high vacuum (UHV) leak tightness.

• Choosing the correct cross-section (C-ring, E-ring, O-ring) depends entirely on your available seating load and required spring-back (recovery).

• Base metals provide the structural resilience (spring force), while soft outer plating (silver, nickel, gold) undergoes plastic deformation to block micro-leak paths.

• Upgrading to a metal seal is not a simple drop-in replacement; it requires strict adherence to cavity design, flange rigidity, and surface finish tolerances.

When to Transition from Elastomers to a Metal Seal

Engineers usually begin designs using standard rubber or polymer O-rings. They offer excellent flexibility and require minimal compressive force to create a reliable barrier. However, physical limitations govern their use. You must transition to metallic options when your operating parameters push polymers past their physical failure points.

Recognizing the Performance Thresholds

Elastomers exhibit distinct failure modes under extreme conditions. They undergo glass transition, thermal degradation, or explosive decompression. You must upgrade to a metallic alternative when your application hits specific engineering thresholds.

• Extreme Temperatures: Standard elastomers turn brittle and shatter at cryogenic temperatures below -200°C. They melt, bake out, or permanently deform at continuous operating temperatures above 250°C.

• Severe Pressures: High-pressure systems easily extrude soft polymers through microscopic flange gaps. When pressures escalate beyond 10,000 PSI, or when seeking ultra-high vacuum (UHV) integrity, metallic structures become mandatory.

• Aggressive Media: Corrosive gases, caustic fluids, and heavy radiation exposure rapidly degrade polymeric chains. Metallic alloys shrug off these aggressive attacks, ensuring the barrier remains intact.

Focusing on Reliability and Safety Outcomes

Upgrading to metallic sealing technology requires a higher upfront unit investment. Machining aerospace-grade alloys and applying precious metal plating naturally costs more than molding rubber. However, you must view this transition through the lens of operational safety. In high-stakes environments, a sudden blowout causes catastrophic system failure. Heavy-duty metallic barriers prevent these disasters. They maintain joint integrity during sudden pressure spikes, protecting both your equipment and your personnel.

Evaluating Metal Seal Profiles: Finding the Right Cross-Section

You cannot select a profile based on arbitrary preferences. You must match the cross-section to your available seating load and the necessary spring-back. Spring-back refers to the seal's ability to rebound and maintain contact when the flange separates slightly under pressure.

1. Metal C-Rings: This profile offers an excellent balance of high spring-back and moderate seating load requirements. The open "C" slot typically faces the high-pressure side of the system. System media enters the slot, pressure-energizing the ring. As system pressure increases, it forces the walls outward, pressing them harder against the flange faces. We recommend this profile for standard rigid flanges facing high-pressure environments.

2. Metal E-Rings / U-Rings: Engineers designed these profiles to provide high deflection while requiring a very low seating load. The convoluted shape compresses easily. They serve as the ideal choice for lightweight aerospace flanges or hardware susceptible to distortion under heavy bolting compression. They accommodate significant thermal expansion without crushing the underlying hardware.

3. Metal O-Rings: These solid or hollow metallic tubes require massive seating loads. They offer minimal spring-back because they rely on heavy cross-section compression. You physically crush the tube into the flange groove. They work best for extreme high-pressure static applications where you utilize massive, heavy-duty flanges capable of handling immense bolting forces.

4. Spring-Energized Metal Seals: This design incorporates an internal spring inside a metallic jacket. The internal spring provides consistent load generation across the entire circumference. We recommend these for environments experiencing severe thermal cycling. As the flange expands and contracts repeatedly, the internal spring ensures the jacket maintains continuous contact, delivering extreme fatigue resistance.

Cross-Section Performance Chart

Use the chart below to quickly compare how different profiles handle structural demands. Note how load requirements inversely correlate with spring-back capabilities.

Selecting Base Metals and Plating for Chemical Compatibility

Designing an effective sealing joint requires a dual-material approach. You need a highly resilient structural core to generate the spring force. Simultaneously, you need a soft outer layer to fill the microscopic imperfections on your flange face. This combination guarantees both physical strength and hermetic tightness.

Base Material: The Structural Core

The base alloy dictates the yield strength and fatigue resistance of the component. Manufacturers use cold work hardening processes to transform standard alloys into stiff, spring-like structures. This ensures the profile pushes back against the flange actively.

• Alloy 718 (Inconel): This nickel-chromium superalloy provides exceptional yield strength at extreme temperatures. It resists fatigue under heavy thermal cycling. It remains the industry standard for aerospace engines and high-temperature gas turbines.

• 304 / 316 Stainless Steel: These austenitic stainless steels offer excellent baseline corrosion resistance. We specify them for general-purpose high-pressure applications where extreme temperatures are less of a concern.

• Elgiloy: This cobalt-chromium-nickel alloy dominates the oil and gas sector. It offers extreme resistance to sour gas (hydrogen sulfide) environments. It maintains its structural integrity where standard stainless steels would succumb to stress corrosion cracking.

Plating and Coatings: The Sealing Interface

Even the most finely machined flange contains microscopic scratches and tool marks. A hard base metal cannot flow into these asperities. Therefore, manufacturers apply a soft outer plating. When you bolt the flanges together, this soft layer undergoes plastic deformation. It literally smears and flows into the tiny grooves, physically blocking all micro-leak paths.

Hardware Requirements and Implementation Risks

Many engineering teams make a critical error during system upgrades. They assume they can simply remove a failed elastomer and drop a metallic equivalent into the same groove. We must emphasize a strict warning: retrofitting an elastomer groove without hardware modifications almost always results in failure.

The Reality of Surface Finish Tolerances

Rubber O-rings easily conform to rough machining marks. Metallic platings require significantly smoother surfaces to achieve a leak-tight joint. You must strictly control the roughness average (Ra) of your flange.

Furthermore, the direction of the machining marks matters just as much as their depth. You must utilize a concentric lay on the sealing face. If a machinist leaves continuous spiral turning marks on the flange, those marks act like a microscopic highway. The gas will follow the spiral path right past the barrier. Polishing the face to remove radial scratches is an absolute necessity.

Seating Load and Flange Rigidity

You must accurately calculate your required bolting force. Metallic components demand significantly higher compression forces than polymers. If you apply this high load to a thin, flexible flange, the flange will bow between the bolts. This bowing effect causes the flange faces to separate slightly. Once the separation exceeds the spring-back capability of the profile, the system leaks. You must ensure your hardware boasts sufficient rigidity to withstand heavy compression without distorting.

Cavity Design and Anti-Extrusion Gaps

Precision cavity design dictates your success. The groove depth controls exactly how much compression the profile experiences. If the groove is too shallow, you will over-compress and crush the core, destroying its spring properties. If the groove is too deep, you will not generate enough plastic deformation in the plating. You must also minimize the clearance gap between the mating flanges to prevent the high-pressure media from extruding the component outward.

Common Implementation Mistakes:

• Reusing a previously compressed component.

• Ignoring spiral tool marks on the mating flange.

• Using low-tensile bolts that stretch under operational pressure.

• Failing to account for thermal expansion differences between dissimilar flange materials.

How to Evaluate and Shortlist Metal Seal Manufacturers

Selecting the right supplier ensures your custom engineered solution functions precisely as intended. Avoid manufacturers who merely sell catalog parts without offering technical engineering support. You need a partner capable of analyzing your specific operational challenges.

Engineering and Prototyping Support

Look for manufacturers who provide custom finite element analysis (FEA). FEA allows engineers to digitally simulate the crush force, spring-back, and plastic deformation before machining a single part. This validation process prevents costly hardware failures. Additionally, assess whether they offer physical load testing for prototypes to verify the digital models.

Industry Compliance and Certifications

Your operating environment dictates strict quality management standards. Evaluate their facility certifications carefully. If you operate in the aerospace sector, the manufacturer must hold AS9100 certification. If you design equipment for the oil and gas industry, demand compliance with API 6A standards. These certifications prove they maintain rigorous traceability for their alloys and plating processes.

Lead Times and Production Scalability

Custom engineering takes time. However, a reliable partner should swiftly transition from custom short-run prototyping to full-scale production. Evaluate their internal manufacturing capacities. Do they outsource their plating? Outsourcing often introduces severe lead time delays. Manufacturers who handle forming, heat treating, and plating entirely in-house offer superior scalability and tighter quality control.

Conclusion

Specifying a heavy-duty sealing solution requires a delicate balance of engineering principles. You must carefully match your chosen cross-section profile against your available seating load. You must select a base alloy capable of surviving your thermal environment while choosing a soft plating that deforms perfectly into your specific flange finish. Finally, you must prepare your cavity geometry and flange rigidity to accept these precise components.

Stop guessing with critical high-pressure joints. If you face extreme operating parameters, consult directly with a sealing application engineer. Submit your exact pressure data, temperature extremes, media types, and hardware drawings for a custom design review. A rigorously engineered solution will secure your systems and eliminate catastrophic failures.

FAQ

Q: Can a metal seal be reused after the flange is opened?

A: Generally, no. Because the soft plating undergoes plastic deformation to create the seal, removing the compressive load compromises its ability to seal a second time. They are strictly single-use components engineered for one reliable crush cycle.

Q: How does a metal seal differ from a metal tag seal?

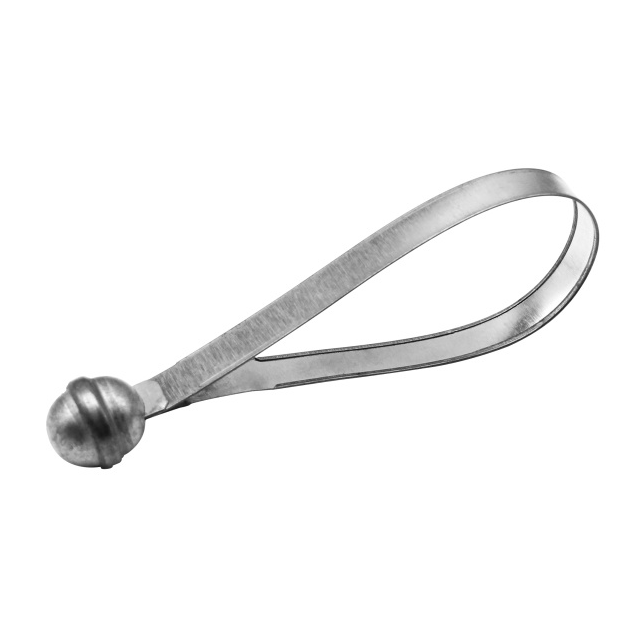

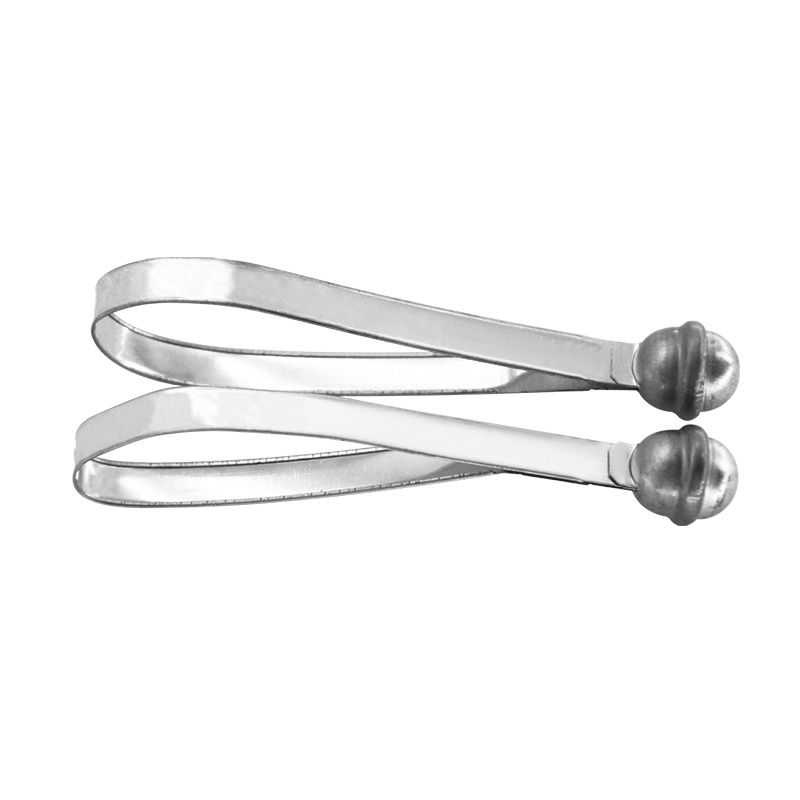

A: An industrial seal is an engineered component used to contain fluid pressure in machinery. Conversely, a metal tag seal acts as a tamper-evident locking device. Logistics companies use them on shipping containers to secure cargo and visually prevent unauthorized access.

Q: What is the standard leak rate for a properly installed metal seal?

A: When correctly specified with proper plating and a pristine surface finish, they easily achieve ultra-high vacuum (UHV) integrity. They routinely demonstrate leak rates of 1 × 10⁻⁹ cc/sec Helium or better in rigorous testing environments.

Q: What happens if my flange surface finish is too rough?

A: The soft outer plating will fail to completely fill the deep asperities and machining grooves. This failure leaves a continuous micro-leak path for gases to escape. You must polish or re-machine the hardware to the required specifications before installation.
